Differential Settlement: Hidden Risk Behind Building Damage

By Adlan Khalidi · September 2, 2026

Building showing visible tilting and uneven settlement with cracks at the junction between two structures

What Is Differential Settlement?

Differential settlement is the uneven downward movement of a building’s foundation, where one area settles more than another. While some degree of total settlement is expected in any structure, it is the difference in settlement between two points that causes structural damage.

When the left side of a building settles 30 mm and the right side settles 5 mm, the 25 mm difference creates angular distortion in the structure. This distortion generates internal stresses — bending, shear and tension — that manifest as cracks in walls, distorted openings, uneven floors and, in severe cases, structural failure.

Differential settlement is often described as a “hidden risk” because it develops gradually. By the time visible cracks appear, significant ground movement has already occurred. Early detection through monitoring and prevention through proper geotechnical investigation are far more effective than after-the-fact repairs.

Differential Settlement vs Uniform Settlement

Question

Yes

No

Definition

Entire building settles by the same amount

Different parts of the building settle by different amounts

Structural impact

Generally low — no internal distortion

High — creates bending, shear and tensile forces

Visible damage

Minimal cracking; serviceability issues (utility connections, access levels)

Diagonal cracks, distorted openings, uneven floors, separation of elements

Common causes

Uniformly compressible ground, evenly distributed loading

Variable ground conditions, uneven loading, mixed foundations

Risk level

Low to moderate

Moderate to critical

Key concern

Building level relative to surroundings

Internal structural integrity

In practice, truly uniform settlement is rare. Most settlement problems involve some degree of differential movement.

Why Differential Settlement Happens

1. Variable Soil Conditions Across the Site

This is the most common cause. A building footprint may span different soil types — firm residual soil on one side and soft clay or peat on the other. Without adequate borehole coverage across the full site, these variations can go undetected until construction reveals them.

In Malaysia, ground variability is particularly pronounced on ex-mining land (random pockets of fill and tailings), cut-fill platforms (firm cut ground next to compressible fill), and sites near geological boundaries.

2. Uneven Structural Loading

Buildings with significantly different loading intensities — such as a tower block connected to a low-rise podium, or a heavy lift shaft adjacent to a lightly loaded area — will impose different stresses on the ground. If the foundation design does not account for these load differences, differential settlement results.

3. Mixed Foundation Types

Using different foundation systems within the same structure — for example, piled foundations for the main building and shallow footings for an attached canopy or entrance — creates a mismatch in settlement behaviour. Piled foundations settle minimally, while shallow foundations on compressible soil settle significantly, causing a step at the junction.

4. Changes in Groundwater

Localised lowering of the groundwater table — from dewatering on an adjacent site, seasonal fluctuation, or drainage changes — increases effective stress on the soil in the affected area, triggering consolidation settlement. If the drawdown is localised, settlement is also localised, creating differential movement.

5. Adjacent Construction Activity

Excavation, piling or surcharge loading on a neighbouring site can cause ground movement beneath existing buildings. The effect is typically more pronounced on the side closest to the adjacent activity, producing differential settlement.

6. Inadequate Soil Investigation

Insufficient borehole coverage — too few boreholes, too shallow, or concentrated in only part of the site — leaves data gaps. Ground conditions between boreholes are interpolated, and if the actual ground is softer or more variable than assumed, differential settlement can result.

Who Is Affected by Differential Settlement?

How Differential Settlement Damages Buildings

1. Structural Cracking Patterns

Differential settlement produces characteristic crack patterns. Diagonal cracks radiating from window and door corners are the most common indicator — the cracks propagate in the direction of the greater settlement. Stepped cracks following mortar joints in brickwork are another telltale sign.

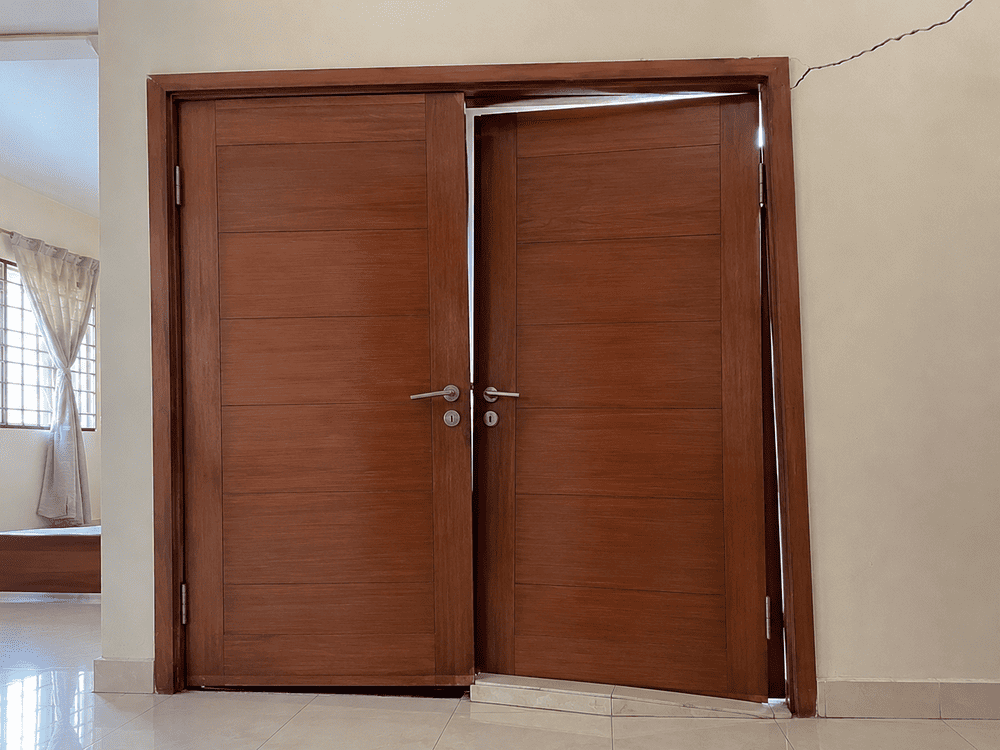

2. Door & Window Distortion

As the structure distorts, door and window frames go out of square. Doors stick, windows do not close properly, and gaps appear at the top or bottom of openings. This is often the earliest noticeable sign.

3. Floor & Slab Movement

Ground-supported floor slabs can crack, tilt or develop steps at construction joints. In severe cases, the floor slopes noticeably — a marble placed on the floor rolls to one side.

4. Utility & Service Disruption

Underground pipes, drains and utility connections are rigid. Differential settlement can shear pipe connections, block drainage falls and damage buried services, leading to leaks, blockages and functional failures.

5. Aesthetic & Property Value Impact

Even where structural safety is not compromised, visible cracking, uneven floors and distorted features reduce property value and market appeal. Buyers and tenants are understandably wary of buildings showing settlement damage.

Warning Signs of Differential Settlement

Sign

Description

Action Required

Diagonal cracks from window/door corners

Cracks propagating toward the area of greater settlement

Professional structural assessment

Stepped cracks in brickwork

Cracks following mortar joints in a staircase pattern

Geotechnical & structural assessment

Doors/windows sticking

Frames distorted by structural movement

Monitor and investigate if worsening

Uneven floors

Floor slopes in one direction or has steps at joints

Level survey to quantify movement

Gap between wall and ceiling

Structural elements separating due to rotation

Structural assessment — potentially serious

Cracking at building junctions

Cracks where extensions, podiums or different structures meet

Investigate foundation type transition

External paving separating from building

Relative movement between building and ground

Monitor — indicates ongoing settlement

Bulging or bowing walls

Walls being pushed or pulled by differential movement

Urgent structural assessment

How Differential Settlement Is Measured & Assessed

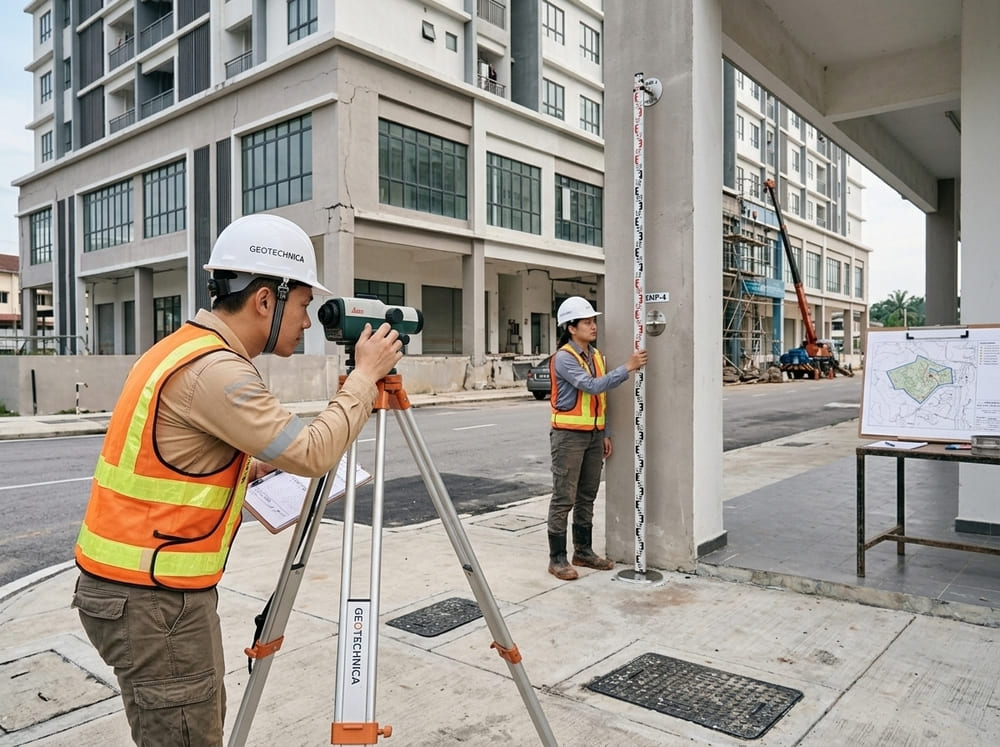

1. Precise Level Survey

The most direct measurement method. Survey markers (reference points) are installed at multiple locations on the building — columns, corners, load-bearing walls — and precise levelling surveys are conducted at regular intervals (weekly, monthly or quarterly depending on settlement rate). The difference in level between any two points gives the differential settlement.

2. Crack Monitoring

Crack gauges (tell-tales) are installed across active cracks to measure whether they are widening, closing or stable. Demec gauges or crack callipers provide precise measurements. Monitoring over time distinguishes active settlement from historical movement.

3. Inclinometer & Tiltmeter Monitoring

Inclinometers installed in boreholes adjacent to the building measure lateral ground movement. Tiltmeters mounted on the structure measure angular rotation. These instruments are particularly useful for monitoring buildings near excavation or piling works.

4. Geotechnical Investigation

If differential settlement is suspected, boreholes may be drilled adjacent to or through the building’s foundation to assess the ground conditions causing the problem. This helps determine whether the settlement is likely to continue and what remediation is appropriate.

Malaysia-Specific Differential Settlement Risks

1. Coastal Soft Clay

Malaysia’s west coast is underlain by marine clay deposits that vary in thickness. A building footprint that spans areas of different clay thickness will experience differential consolidation settlement. Port Klang, Penang and parts of Johor Bahru are particularly susceptible.

2. Peat Soil

Peat thickness can vary dramatically over short distances — from 2 m to 10 m within the same site. This natural variability makes differential settlement on peat almost inevitable without ground treatment. Peat areas in Sarawak, Johor and Selangor require particularly careful investigation.

3. Limestone / Karst Terrain

Limestone bedrock surfaces are characteristically irregular — pinnacles rising 10–20 m above troughs within metres of horizontal distance. Foundations resting on pinnacles have virtually zero settlement, while those spanning troughs over soft infill material can settle substantially. This creates extreme differential settlement scenarios.

4. Ex-Mining Land

Former tin mining areas contain randomly distributed pockets of loose sand, clay, gravel and voids. The ground profile is inherently unpredictable and non-uniform, making differential settlement a primary design concern.

5. Transition Zones (Cut-Fill Boundaries)

On hillside developments and platform sites, the boundary between cut ground (firm, undisturbed) and fill ground (compressible, placed) creates a natural differential settlement risk. If the transition is not identified and managed in the foundation design, cracking occurs at or near the cut-fill boundary.

Tolerable Differential Settlement Limits

The following table shows commonly referenced limits. These are general guidelines — project-specific limits should be determined by the structural and geotechnical engineer.

Structure Type

Maximum Angular Distortion (δ/L)

Approximate Differential Settlement for 6 m Span

Reinforced concrete frame buildings

1/500

12 mm

Load-bearing masonry walls

1/1000 to 1/700

6–9 mm

Steel frame buildings (flexible)

1/300

20 mm

Industrial buildings (crane rails)

1/1000

6 mm

Sensitive finishes (tiling, glass facades)

1/1000

6 mm

Machinery foundations (vibration-sensitive)

1/2000

3 mm

Source: General references from Eurocode 7, BS 8004, and Skempton & MacDonald (1956). Actual tolerable limits depend on specific structural details and should be confirmed by the project engineer.

How To Prevent Differential Settlement

1. Comprehensive soil investigation across the full building footprint — not just a few boreholes in one area. Ensure boreholes are positioned at building corners, heavily loaded zones and areas suspected of variable ground.

2. Consistent foundation type — avoid mixing piled and unpiled foundations within the same structure wherever possible. If different systems are necessary, design for the expected differential movement at the junction.

3. Adequate borehole spacing in variable ground — in karst, ex-mining or transition zones, closer borehole spacing is essential to map the actual ground variability.

4. Ground improvement where needed — preloading with surcharge, vertical drains (PVD), stone columns or cement stabilisation can reduce and equalise settlement across the site.

5. Structural design for tolerance — incorporate movement joints, flexible connections and structural detailing that accommodates a defined amount of differential settlement.

6. Settlement monitoring programme — install monitoring points before construction begins and track settlement throughout construction and the post-construction period.

7. Pre-condition survey for adjacent buildings — document the condition of neighbouring buildings before starting construction to establish a baseline for any future settlement claims.

Remediation Options for Differential Settlement

When differential settlement has already occurred, remediation options include:

The appropriate remediation method depends on the cause, magnitude and rate of settlement, the structural condition of the building, and cost-benefit considerations. A geotechnical and structural assessment is essential before selecting a remediation strategy.

Common Mistakes That Lead to Differential Settlement

1. Concentrating boreholes in one area of the site — ground conditions 30 m away could be completely different.

2. Designing foundations based on assumed ground uniformity — without verifying it through adequate investigation.

3. Mixing foundation types at structural junctions — piled core with shallow-founded extensions is a classic setup for differential settlement.

4. Ignoring cut-fill boundaries — on platform sites, the cut-fill transition must be identified and the foundation designed to bridge it.

5. Not accounting for adjacent construction — failing to assess and mitigate the impact of nearby excavation, dewatering or piling on existing structures.

6. Treating cracks as cosmetic issues — repainting or plastering over cracks without investigating the cause allows the problem to worsen.

Practical Checklist

Reducing Differential Settlement Risk

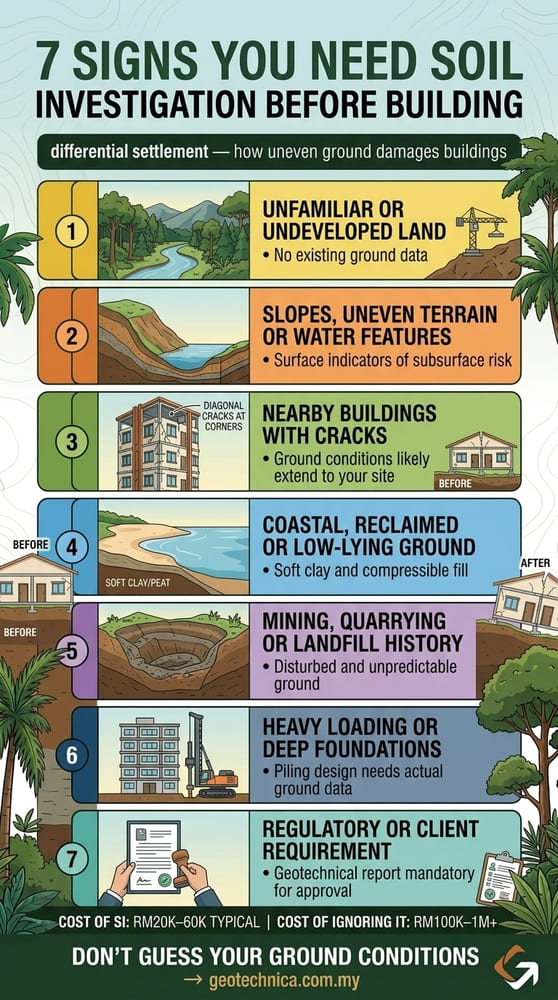

Signs You Need Soil Investigation

FAQ

What is differential settlement?

Differential settlement is the uneven settlement of a building’s foundation, where one part sinks more than another. This uneven movement creates internal stresses in the structure, leading to diagonal cracking, distorted door and window frames, uneven floors and potential structural damage. It is more damaging than uniform settlement because the structure is forced to deform.

Total settlement is the overall downward movement of a foundation point from its original level. Differential settlement is the difference in total settlement between two points. A building can have large total settlement with zero differential settlement (if it sinks evenly) — this is generally harmless. Conversely, small total settlement with significant differential settlement can cause serious structural damage.

Yes, but it is significantly more expensive than prevention. Remediation methods include underpinning, micropiling, grouting and structural jacking. The key is to first identify and address the cause of the differential settlement before repairing the structural damage. Simply filling cracks without addressing the ground problem results in repeated damage.

Common indicators include diagonal cracks at window and door corners, doors and windows that stick or will not close, uneven floors, gaps between walls and ceiling, and visible tilting. A precise level survey by a qualified surveyor can confirm and quantify differential settlement. Monitoring over time distinguishes active ongoing movement from historical settlement.

No. While variable ground conditions are the most common cause, differential settlement can also result from uneven structural loading, mixed foundation types, groundwater changes, adjacent construction activity and overloading. Even on uniform ground, poor foundation design or construction practices can trigger differential movement.

Why Choose Geotechnica?

Geotechnica Sdn Bhd specialises in identifying and mitigating differential settlement risks across Malaysia’s diverse and challenging ground conditions.

Conclusion

Differential settlement is one of the most common — and most preventable — causes of building damage in Malaysia. The characteristic diagonal cracks, distorted frames and uneven floors that affect thousands of buildings across the country are almost always traceable back to inadequate understanding of ground conditions or foundation design that did not account for ground variability.

The solution is not complex: investigate the ground thoroughly across the full building footprint, design foundations consistently based on actual data, treat or improve the ground where it is weak, and monitor settlement during and after construction. These steps cost a fraction of what remediation costs — and they protect not just the structure, but the people and investments inside it.

SOURCES / REFERENCES

  • BS 8004:2015 — Code of Practice for Foundations
  • BS EN 1997 (Eurocode 7) — Geotechnical Design
  • Skempton, A.W. & MacDonald, D.H. (1956) — Allowable Settlement of Buildings
  • Burland, J.B. & Wroth, C.P. (1974) — Settlement of Buildings and Associated Damage
  • BS 5930:2015+A1:2020 — Code of Practice for Ground Investigations
  • JKR Malaysia — Foundation Design Guidelines
  • Jabatan Mineral dan Geosains Malaysia (JMG) — Geological Survey Data
  • Geotechnica Sdn. Bhd. — internal project experience and technical references

This article has been technically reviewed by P.Geol. Gs. Hairil Azwan, Geohazard Specialist and Managing Director at Geotechnica Sdn. Bhd., with 15 years of professional experience in geology, geotechnical engineering and geospatial technology.
